3D – Printing Expansion Chamber Introduction

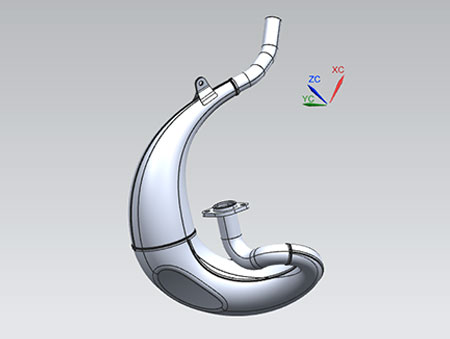

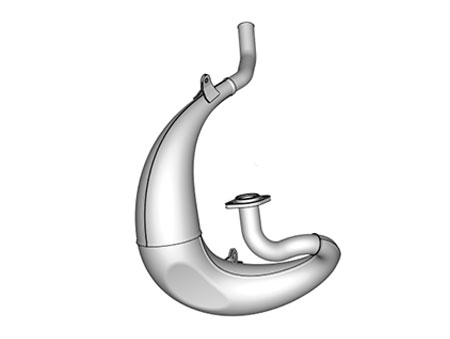

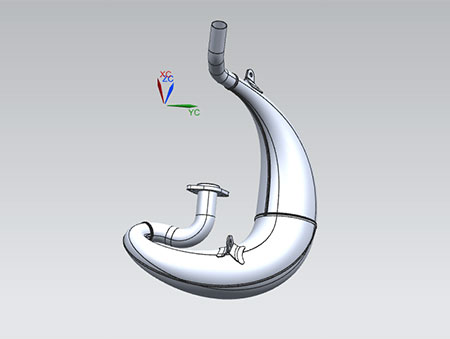

eu. Introduction to Expansion Chamber

An Expansion Chamber is a key element in two – stroke engines, significantly enhancing their performance. Functioning as a specialized exhaust component, it’s designed to manipulate the flow of exhaust gases in a way that optimizes engine power and efficiency.

When an engine expels exhaust gases, the Expansion Chamber’s unique shape creates pressure waves. These waves serve a dual purpose. Firstly, they help in scavenging the remaining exhaust from the combustion chamber, ensuring a cleaner burn. Secondly, they assist in drawing in a fresh charge of fuel – air mixture, improving the engine’s volumetric efficiency. This ultimately leads to increased power output, better fuel economy, and reduced emissions. The design of an Expansion Chamber is highly tailored to the specific engine’s characteristics, such as displacement, RPM range, and intended use, whether it’s for a high – performance motorcycle or a small – engine power equipment.

II. Advantages of 3D Printing for Expansion Chamber

Libertatea de proiectare

3D printing revolutionizes the design process of Expansion Chambers. Traditional manufacturing techniques are often restricted in terms of the complexity of shapes they can produce. In contrast, 3D printing enables the creation of chambers with highly intricate internal and external geometries. Engineers can design variable – cross – sectional areas, complex bends, and unique internal structures that precisely control the pressure waves. This level of design flexibility allows for custom – made Expansion Chambers optimized for specific engine requirements, unlocking maximum performance potential.

Cost – effective Prototyping

Prototyping is a crucial step in developing new Expansion Chamber designs. 3D printing offers a cost – effective and time – efficient solution for this. Unlike traditional methods that require expensive tooling, 3D printing can directly produce prototypes from digital models. This not only reduces the upfront costs but also significantly shortens the prototyping cycle. Engineers can quickly test different design iterations, make adjustments, and move towards a refined design much faster, saving both time and money in the development process.

Small – batch and Custom Production

For niche markets or small – scale manufacturers, 3D printing is a game – changer. It allows for the production of small batches of customized Expansion Chambers. Whether it’s for a classic two – stroke engine restoration or a specialized racing application, 3D printing can meet the unique needs of these customers. This ability to produce small quantities of tailored parts is a distinct advantage over traditional mass – production – focused manufacturing methods, which may not be cost – effective for small – volume orders.

III. Common Metal Materials for 3D – Printed Expansion Chambers

Titan

Titanium is a preferred material for 3D – printed Expansion Chambers due to its exceptional strength – la – weight ratio. In the context of an engine, where reducing weight is crucial for performance, titanium offers high strength while being relatively lightweight. It can withstand the high temperatures and pressures within the exhaust system, ensuring long – term durability. Additionally, titanium has good corrosion resistance, which is important considering the corrosive nature of exhaust gases.

Aluminum Alloys

Aluminum alloys are also widely used. They are lightweight, contributing to the overall reduction of the engine’s weight and improving its power – la – weight ratio. Aluminum alloys have excellent heat – dissipation properties, which is beneficial as the Expansion Chamber can get extremely hot during operation. This helps in maintaining the chamber’s performance and preventing heat – related damage to other engine components. They are also relatively easy to 3D print, making them a practical choice for production.

Oţel inoxidabil

Stainless steel is known for its high durability and corrosion resistance. It can endure the harsh conditions of the exhaust system, including exposure to hot, corrosive gases. Stainless steel provides the necessary strength to withstand the mechanical stresses generated during engine operation. Although it is heavier compared to titanium and aluminum alloys, its reliability makes it an ideal choice for applications where long – lasting performance and resistance to wear and tear are top priorities.

How to Lower Procurement Costs?

Work with suppliers just like DT who offers post-processing bundles (heat treatment, sanding, finishing) to avoid extra markup from separate vendors, since DT provides one-stop service with their 33 high-end industrial SLM 3D printers and 14 CNC machines for post-processing.

Avantajul nostru constă în imprimarea metalică SLM, asa cum avem 33 imprimante SLM 3D din metal scumpe (and the number is still growing).

Bine ați venit să vă consultați.

Nu există MOQ (Cantitatea minima de comanda) limita aici. Putem personaliza chiar și o singură piesă pentru tine.
