The Advantages of Metal 3D Printed Centrifugal Pump Volutes
Overview
Traditional centrifugal pump volutes and pump housings are typically manufactured via sand casting or investment casting. While these methods work well for standard mass-produced pumps, they carry clear limitations for custom and high-performance pump development. Mold geometry restricts internal flow path design, lead times are long for prototype iterations, and casting defects such as porosity can impact pump efficiency and service life.
Our custom metal 3D printed centrifugal pump volutes and housings solve these manufacturing bottlenecks. Built using SLM selective laser melting technology, we can produce highly complex free-form flow channels that are not feasible with casting. We offer flexible material selection according to your project requirements, supporting pump R&D teams and equipment manufacturers across many different fluid-handling sectors.
Why 3D Print Pump Volutes Instead of Traditional Casting
The performance of a centrifugal pump heavily depends on the geometry of its internal volute flow path. Conventional casting requires draft angles and fixed tooling, forcing design compromises. SLM metal 3D printing removes mold-related limitations entirely. We can build smooth, streamlined internal channels tailored to your pump’s operating conditions.
This optimized geometry reduces turbulence, cuts pressure loss and mitigates cavitation, directly improving your pump’s hydraulic efficiency. One-piece consolidated printing eliminates welded joints and assembly seams, lowering fluid leakage risk under high-pressure operating conditions.
Flexible Metal Material Selection
We do not lock into a single material for pump volute production. Based on your working fluid, pressure requirements and corrosion environment, we can select and print the most suitable metal alloy for your application.
- 316L Stainless Steel: Excellent resistance to acids, alkalis and chloride exposure, widely used for corrosive fluid, seawater and sanitary process pumps
- 304 Rostfritt stål: Cost-effective general-purpose stainless option for clean water and mild service environments
- Inconel Alloys: High temperature and high corrosion resistance for harsh chemical or high-heat pumping applications
- Ti6Al4V Titanium Alloy: Lightweight, hög styrka, outstanding corrosion resistance for marine and special fluid equipment

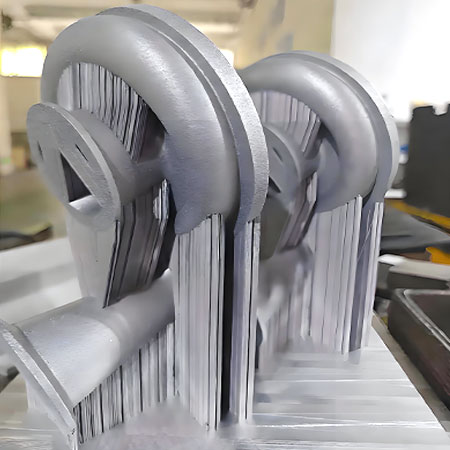

- Aluminum Alloys: Lightweight choice for low-corrosion, low-temperature pump prototypes
Our engineering team will help evaluate and recommend the best material once you share your working conditions.
Key Advantages of Our Custom 3D Printed Pump Volutes
1. Application-specific Optimized Flow Channel Design
We design internal flow paths to match your pump’s operating parameters and fluid properties. Curved, smooth free-form geometries reduce fluid resistance and energy loss, helping your centrifugal pump outperform conventionally cast alternatives.
2. No Mold Cost, Fast R&D Iteration

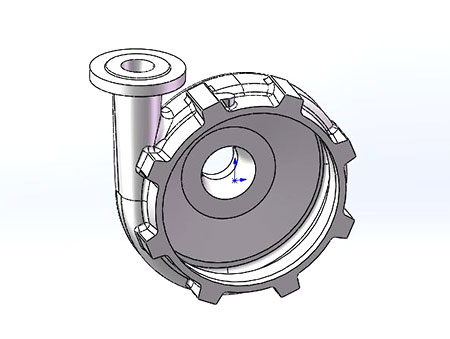

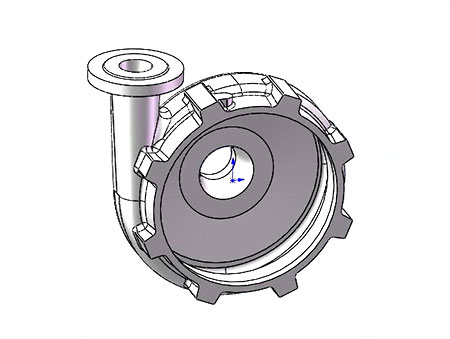

There is no need to invest in casting tooling. Production starts directly from your STEP, STL or IGES design files. This drastically cuts lead time for prototype validation, speeds up new pump product development, and removes high mold costs for low-volume custom projects.
3. Consolidated One-Piece Construction
Multiple separate components from a conventional pump housing assembly can be merged into a single printed part. This reduces assembly steps, minimizes tolerance stack-up and connection gaps, and improves overall structural stability.
4. Full Range of Post-processing Options
We provide complete secondary operations for finished pump volutes. Available services include sandblasting, passivform, internal flow channel polishing, and precision CNC machining for flanges and mounting holes. These processes ensure precise assembly dimensions and controlled surface finish on fluid contact surfaces.
Industries & Applikationer
Our custom 3D printed centrifugal pump volutes and housings are used across a wide spectrum of fluid handling industries:
- Chemical process fluid transfer pumps
- Seawater desalination and marine circulation pumps
- Wastewater treatment and environmental water supply equipment
- Food & beverage, pharmaceutical sanitary centrifugal pumps
- Laboratory custom fluid test pump prototypes
- Specialized high-temperature or anti-corrosion custom pump systems
3D Printing VS Traditional Casting | Pump Volute Manufacturing Comparison
| Item | Traditional Cast Volute | SLM 3D Printed Volute |
|---|---|---|
| Flow Channel Design | Limited by molds and draft angles, hard to optimize | Free-form custom geometry, supports complex streamlined channels |
| Production Lead Time | Long, requires mold fabrication and debugging | Rapid turnaround, no tooling required for prototypes & small batches |
| Surface Quality | Risk of sand holes, casting porosity and uneven texture | Fully dense as-printed structure; optional internal polishing available |
| Material Options | Constrained by casting manufacturability | Broad metal alloy selection, matched to your operating environment |
| Best Suited Scenarios | Standard large-volume mass production pumps | Custom R&D, high-performance, low-volume specialty pumps |
Manufacturing & Testing Capabilities
We use SLM selective laser melting metal additive manufacturing and maintain strict quality control for every pump volute project. To meet industrial requirements, we offer optional inspection and validation services:
- Full dimensional inspection reports
- Material test certificates for your selected alloy
- NDT non-destructive testing (upon request)
- Hydrostatic pressure testing for pressure-containing pump housings
Whether you need a single prototype for lab testing or ongoing small batch custom production, we can deliver finished pump volutes with complete technical documentation.
Vanliga frågor
1. Can you print pump volutes from our own 3D design files?
Absolutely yes. We accept STEP, STL and IGES files. Our engineers run a free DFM (Design for Additive Manufacturing) review on your model, and provide practical suggestions to improve printability and pump performance.
2. What is your minimum order quantity?
There is no strict MOQ. We accept 1-off prototype manufacturing for R&D verification, and support ongoing small batch custom production once your design is finalized.
3. Can you provide pressure testing and internal polishing?
Ja. Post-processing options include internal flow channel polishing, sandblästring, passivform, hydrostatic pressure testing and NDT inspection. We tailor these services according to your project specifications.
4. What are the typical tolerances for SLM printed pump components?
Standard SLM printing tolerance is ±0.1mm. Critical mating features such as flanges and mounting holes can be CNC machined in-house after printing to achieve tighter tolerances for reliable assembly.
Request A Quote For Your Custom Pump Volute
If you are developing a custom centrifugal pump and looking for a reliable supplier for metal 3D printed volutes or pump housings, send over your 3D files and operating requirements.
Our additive manufacturing engineers will review your design, recommend suitable metal material options, and prepare a detailed quotation within 24 timmar. Speed up your pump R&D cycle and unlock better hydraulic performance with additive manufacturing.
