We provide high-precision SLM metal 3D printed pump impellers in 5 mainstream types, covering full working conditions from clean water, chemical liquid to sewage and slurry. All impellers are manufactured with dense metal powder materials, featuring complex integrated molding, no welding, korkea mekaaninen lujuus, excellent corrosion resistance and cavitation resistance, perfectly customized for industrial pump replacement, prototype R&D and special fluid equipment.

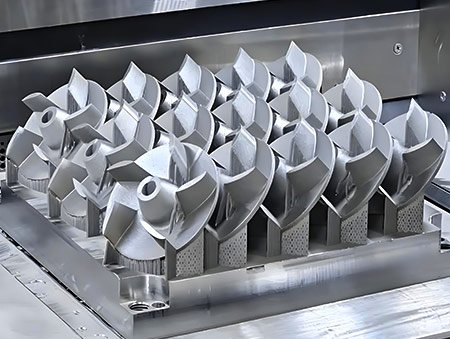

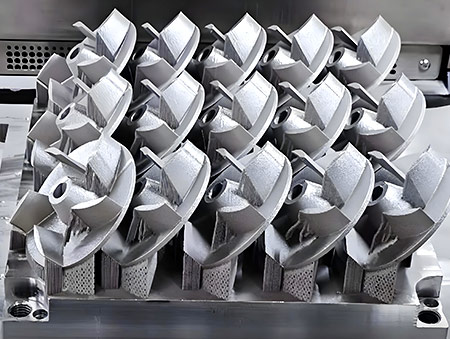

1. 316L Semi-Open Impellers, Batch Produced via SLM 3D Printing
This is an unfinished batch semi-open impeller produced by SLM metal 3D printing technology, retaining the original printing substrate and supports. It is mainly used for mass customized pump spare parts and rapid prototype verification. The optional metal materials are 17-4PH stainless steel and 316L stainless steel, which meet the batch production standards of industrial pump accessories with stable material performance and high dimensional consistency.

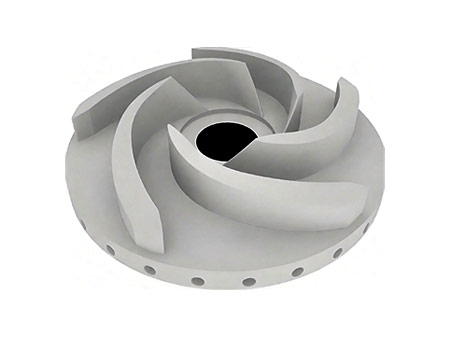

2. Semi-Open Pump Impeller
The semi-open impeller is designed with a rear cover plate and no front cover plate, with unobstructed flow channels and strong anti-clogging performance. It is widely used for conveying sewage, chemical slurry and medium containing fine particles. The conventional printing materials are 316L stainless steel and 17-4PH stainless steel. 316L is suitable for corrosive water environments such as seawater and chemical media, while 17-4PH provides higher hardness and cavitation resistance for industrial sewage pumps.

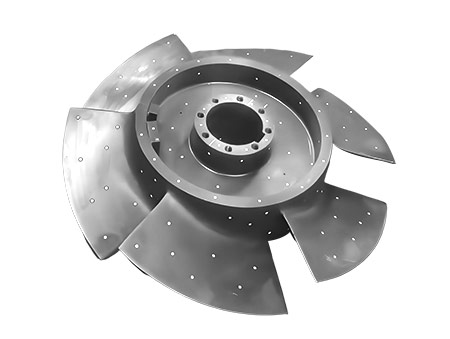

3. Open Pump Impeller
The fully open impeller has no front and rear cover plates, with an ultra-wide flow passage structure. It has the strongest anti-blocking ability and is suitable for slurry pumps, impurity pumps and fluid media containing large particles and fibers. The preferred printing materials are316L stainless steel and 17-4PH stainless steel. For severe wear and corrosive working conditions, Inconel 625 is optional to extend the service life.

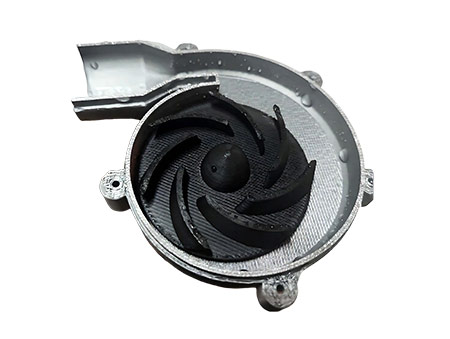

4. Integrated Pump Housing & Impeller Assembly
The integrated pump body and impeller are integrally formed by metal 3D printing without secondary assembly, which effectively avoids assembly errors and fluid leakage. It is specially used for micro chemical pumps, fuel cell pumps and laboratory R&D prototype equipment. Conventional materials are AlSi10Mg aluminum alloy and 316L stainless steel. Aluminum alloy is for lightweight prototype verification, and 316L is for formal industrial corrosive working conditions.

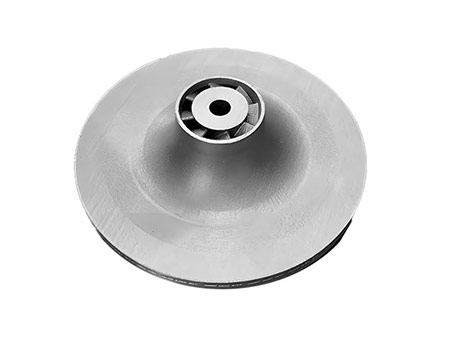

5. Closed Pump Impeller
Equipped with double front and rear cover plates, the closed impeller forms a completely closed flow channel, with the highest hydraulic efficiency and minimal fluid leakage. It’s manufactured in one single piece via SLM metal 3D printing, with no assembly or welding required. It is the mainstream choice for clean water pumps and chemical process pumps, suitable for conveying pure water and clean chemical media. The standard printing materials are 17-4PH stainless steel and 316L stainless steel. For high-temperature and high-pressure corrosive working conditions, Inconel 718 / Inconel 625 ja Ti6Al4V titanium alloy are available for customization.
Ulkomaisten B2B-asiakkaiden suosittelut
“Olin hyvin huolissani, että jotain pahaa tapahtuisi. Mutta tuotteen vastaanottamisen jälkeen, Huomasin, että huoleni oli täysin turha. DT 3D Printing on erittäin luotettava tehdas, jonka laatu on taattu.”
“Tuotteen laatu on huippuluokkaa – notch, käsityö on hienoa, tulostustulos on erinomainen, ja toimitusnopeus on todella nopea. Yleistä, Se tarjoaa erinomaista vastinetta rahalle, ja olen erittäin tyytyväinen.”
“Tulostuslaatu on todella hyvä, ja hinta on varsin edullinen. Myös logistiikka on nopeaa. Kaiken kaikkiaan, DT on luotettava tehdas, ja jatkamme yhteistyötä heidän kanssaan pitkällä aikavälillä.”
Meistä
1. We are a professional metal 3D printing manufacturer.
2. Valmistamme 3D-tulostettuja metalliosia autoteollisuudelle, lääketiede, lentokone, ilmailu ja avaruusteollisuus, drone, ja veneilyteollisuudessa, käyttämällä materiaaleja kuten ruostumatonta terästä, titaani, kupari, alumiini ja sen seokset.
3. Tarjoamme kattavan 3D-tulostuspalvelun.
Palveluihimme kuuluvat:
SLM / BJ / SLA / MJF / FDM / SLS / DLP, CNC machining and post-processing
4. Omistamme 33 SLM-metalliset 3D-tulostimet, 14 CNC machining tools, 60 muoviset 3D-tulostimet, 50 BJ 3D printers (owned by another company in which DT has invested), ja luvut kasvavat edelleen.
5. We are a source factory for many global 3D printing service providers.
Core Advantages of 3D Printing for Pump Applications
Optimized Hydraulic Efficiency
Free from traditional manufacturing constraints, we engineer complex curved blade profiles and smooth flow passages that maximize hydraulic efficiency, reduce turbulence, and lower overall pump energy consumption.
No Tooling, Low Volume Viable
Eliminate high upfront mold and tooling costs. 3D printing makes custom pump impellers, small-batch spare parts, and prototype iterations affordable at any quantity, from one replacement unit to production runs.
Corrosion & Wear Resistant Construction
Select from a full range of industrial metal alloys matched to your operating fluid, including stainless steel, duplex steel, nickel alloys and titanium, for reliable performance in corrosive, abrasive and high-temperature pump environments.
Fast Replacement & Short Lead Times
Rapidly reproduce obsolete or hard-to-source pump impellers without tooling lead times. Cut equipment downtime from weeks to days with our fast-turnaround additive manufacturing service.
Material Selection Guide for SLM 3D Printing Pump Impellers
Ruostumattomat teräkset (304L / 316L / 17-4 PH)
General-purpose corrosion resistance for municipal water, LVI, and standard industrial fluid handling applications.
Duplex Stainless Steels
High strength and superior pitting resistance for seawater, brine, and moderately corrosive chemical processing environments.
Nickel Alloys (Hastelloy, Monel)
Extreme corrosion resistance for strong acids, alkalis, and high-temperature chemical pump applications.
Titaaniseokset
Excellent strength-to-weight ratio and outstanding corrosion resistance for seawater desalination, marine service, and food & pharmaceutical sanitary applications.
Applicable Pump Types
- Centrifugal pumps
- Water pumps & booster pumps
- Chemical process pumps
- Sewage & slurry pumps
- Marine & offshore pumps
- LVI & circulation pumps
- Fire system pumps
- Food & sanitary pumps
Toimialaratkaisut
Vedenkäsittely & Municipal Water
Obsolete pump impeller replacement, multi-model spare part programs, and corrosion-resistant material upgrades for water distribution, wastewater treatment and pumping stations. Reduce inventory costs and shorten maintenance downtime with on-demand manufacturing.
Kemiallinen prosessointi
Alloy-matched impeller solutions for corrosive process fluids, solvents, and high-temperature pumping systems. Fully dense printed structures eliminate casting porosity risks, with surface polishing options for smooth flow and reduced fouling.
LVI & Building Services
Drop-in replacement impellers for standard HVAC pump housings, and custom performance-optimized designs for retrofit projects. Low minimum order quantities and fast lead times make engineering upgrades and maintenance simple.
Marine & Offshore
Seawater-resistant material options and classification society compliant materials for shipboard pumps, offshore platforms and marine cooling systems. Emergency spare part support available for critical vessel operations.
Food & Pharmaceutical
Sanitary-grade 3D printed impellers in stainless steel and titanium, with polished flow surfaces and no crevice design. Full material traceability and surface finish documentation to meet food, beverage and pharmaceutical industry standards.
Jälkikäsittely & Quality Control
- CNC precision machining of mounting bores and fit surfaces
- Surface polishing of flow paths for improved hydraulic efficiency
- Dynamic balancing for high-speed pump operation
- Full dimensional inspection report with every order
- Hydrostatic pressure testing (optional)
Miksi valita meidät?
- We 3D print many types of impellers asiakkaille ympäri maailmaa.
- Tarjoamme oma tuotanto with 33 huippuluokan teolliset SLM-metalliset 3D-tulostimet ja 14 CNC-koneet.
- Erikoistarjous uusille asiakkaille
- Vahvuutemme on SLM-metallitulostus. Omistamme 33 huippuluokan SLM-metalliset 3D-tulostimet, useimmat maksavat noin $150,000 kukin, ja kalustomme kasvaa edelleen.
- Ei vähimmäistilausmäärää (Vähimmäistilausmäärä) pakollinen. Voimme räätälöidä sinulle jopa yksittäisen tekstin.
Ota rohkeasti yhteyttä, jos sinulla on kysyttävää..
Minimitilausmäärää ei ole. (Vähimmäistilausmäärä) raja tähän. Voimme räätälöidä sinulle jopa vain yhden tekstin.
Tervetuloa konsultointiin.
